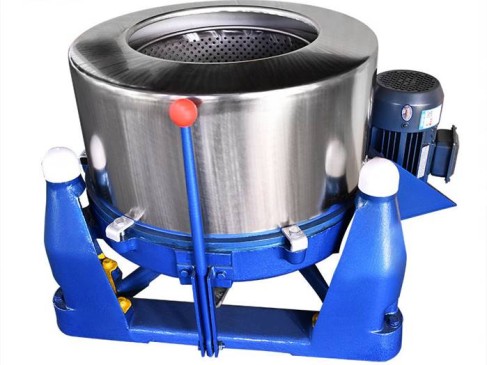

1.There unique foot dangling types structure, can avoid the vibration that produced because the load is uneven.
2.Stainless steel cover and cast iron pedestal with exhalent siphon at the bottom.
3.Principal axis is made of superior steel after heating.
4.Excellent braking performance enables stop working quickly.
5.Side Bottom Water Outlet, the bottom water outlet is designed, the dehydration flows out quickly, and the dehydration
effect is better.
|
Model |
ASHE-25 |
ASHE-50 |
ASHE-100 |
ASHE-200 |
|
Supply voltage |
Standard:380V-3PH-N-50Hz |
Standard:380V-3PH-N-50Hz |
Standard:380V-3PH-N-50Hz |
Standard:380V-3PH-N-50Hz |
|
Diameter of drum(mm) |
500 |
600 |
1000 |
1200 |
|
High of drum(mm) |
260 |
300 |
380 |
480 |
|
Speed of drum(r/min) |
1000 |
1000 |
900 |
750 |
|
Motor power(Kw) |
1.1 |
2.2 |
5.5 |
7.5 |
|
Max. capacity(Kg) |
25 |
50 |
130 |
220 |
|
Dimension(mm) |
1000x1000x650 |
1250x1250x700 |
1800x1800x900 |
2000x2000x1000 |
