1. It has high quality recycle working system, including filter, still tank, still cooler, water separator and cleaning tank, which can save solvent (perchloroethylene), more than 99.8% solvent can be recycled, no pollution to the air, no harm to human, keep the room fresh.
2. Main parts with high quality stainless or non-ferrous metals stamping with a mold crafted, using high-temperature galvanizing technology to greatly increase the corrosion resistance of the machine.

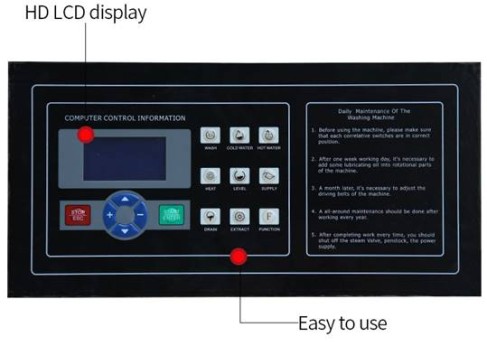

3. Fully automatic, microcomputer-controller, freely programmable,30 possible programs , operator could set flexible.
4. Fluff collector uses nylon bag on the filter to prevent blockage.
5. High-speed fan can speed up the drying and cooling rate.
6. Heating the solvent by distillation tank sent vapor into the condenser, and then purified solvent.
7. Dry-cleaning oil filter can remove impurities, particles, pigment, to ensure clean dry oil played a significant role in enhancing the quality of laundry, and avoid problems of dyeing other expensive clothing, reduce the number of distillation, make the machine long life.
8. Equipped with VFD which allow flexible selection of dry clean and extraction speed to suit the wash items. Fast extraction. Excellent protection for the washed items. Advanced refrigeration system to control the solvent temperature. Variable extract spin speed to meet the requirement of dry clean of leather and other fabrics. Fast drying, low energy consumption.
|
Model |
ASQ-8 |
ASQ-10 |
ASQ-12 |
ASQ-15 |
|
Loading Capacity(kg) |
8 |
10 |
12 |
15 |
|
Heating Power(kw) |
3.6 |
4.5 |
4.8 |
5.2 |
|
Steam Pressure(mpa) |
0.4 |
0.4 |
0.4 |
0.4 |
|
Cooling Water Pressure(mpa) |
0.2 |
0.2 |
0.2 |
0.2 |
|
Wash Solvent |
C2L4 |
C2L4 |
C2L4 |
C2L4 |
|
Rated Voltage(v) |
220/380 |
220/380 |
220/380 |
220/380 |
|
Motor Power(kw) |
0.4/1.5 |
0.4/1.5 |
0.4/1.5 |
0.4/1.5 |
|
Cooling Water Import(inch) |
1/2'' |
1/2'' |
1/2'' |
1/2'' |
|
Dimensions(mm) |
1350X1000X1800 |
1400X1000X1800 |
1450X1050X1800 |
1500X1100X1800 |
|
Total Weight(kg) |
800 |
1000 |
1200 |
1500 |
