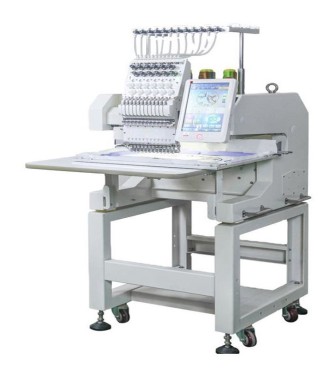

ASHIMA PROMAX EMBROIDERY MACHINE SINGLE HEAD FLAT + CHENILLE

ASHIMA PROMAX EMBROIDERY MACHINE SINGLE HEAD FLAT + CHENILLE: Embroidery Machine Mix Head(Flat+Cording) Single head machine is small in size and light in weight,Powerful function, simple operation,unique design and stable operation,Low noise, with a variety of sizes of embroidered frame and hat frame,Simple design,

Product Brochure Enquire Now

Features:

MODEL: 1201L Single Head 12 Needles Embroidery Machine With Sequin Cording Device

1.Suitable for flat embroidery, cap embroidery and finished garments embroidery, T-shirt embroidery, logo embroidery etc.

2. Embroidery area: 500*1200mm

3. Controller: 10" Touch Screen Dahao A15 System,User-Friendly Interface

4. High speed specialized cap embroidery heads,with double cam,double lever, by motorized jump.

5. Automatic thread trimmer

6. The running speed:100- 1200rpm

7. 280 degree Wide cap frame unit

8. Automatic color change and thread break detection

9. Start, Stop and emergency Stop Button

10.Design Tracing Available

11.One-Step Tracing

12. 10'' touch screen display control pannel, showing real time stitching

13. Memory size: 500 Patterns,200 Million stitches

14. Computer Reads Multiple Design Formats.Such As DST,DSB And More.

15. USB port

16.Networkable And Wi-Fi capable

17. Control system can be updated easily

18. Electricity: 110V/60Hz or 220V/50Hz Selfadaptable worldwide available

19.Equip With Laser Positioning

Technical Parameters
