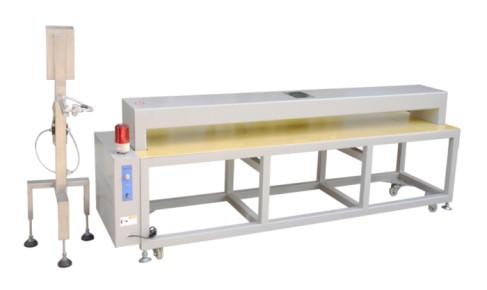

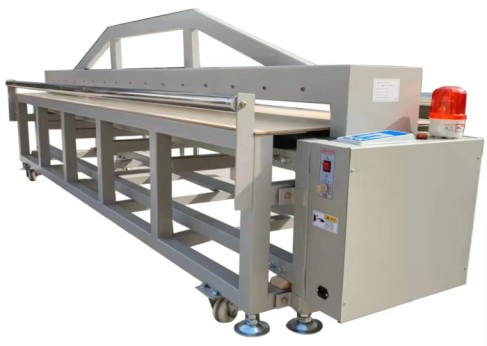

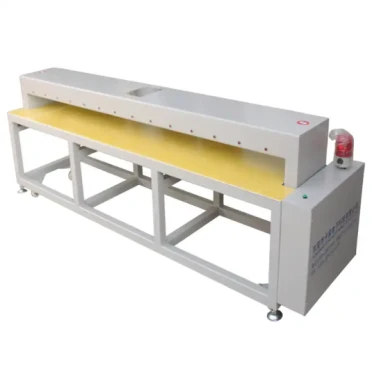

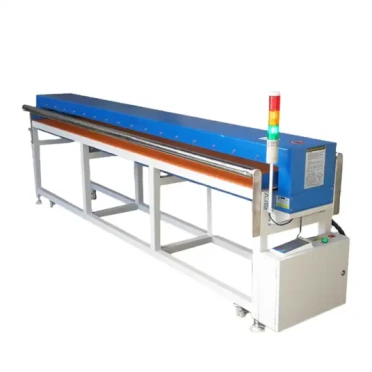

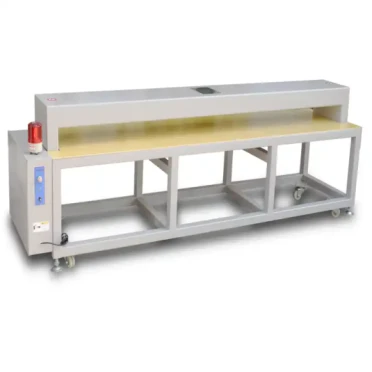

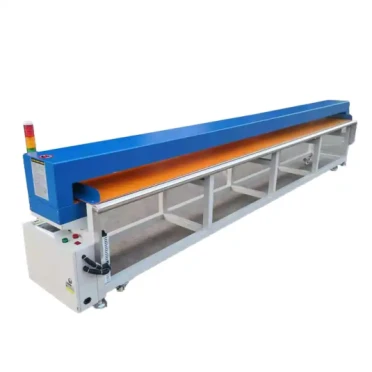

Inline Textile Needle Detector Machine

  • Model: AS-1600/1800ND-INL
Product Brochure Enquire Now

Features:

1.In-Line Textile Needle Detector machine is equipped with integrated circuit, it has stable performance, strong anti-interference ability, anti-vibration and can be used with the assembly line and not affected by other pipeline equipment.
2. Sensitivity can be adjusted freely.
3. Sound and alarm lamp automatically alarm, or output signal to the central control of the assembly line.
4. It can be customized for different widths according to the factory production line requirements.

5.Widely used in textile industry, Home Furnishing, for detecting wide width fabric for broken needle & metal fragments.



Specification parameters:
Tunnel height: 100mm~300mm (Can be customized according to requirements)
Tunnel width: 600~2000mm (Can be customized according to requirements)



Technical Parameters

Model

AS-1600/1800ND-INL

Sensitivity

0.8-3.0mm (Fe)

Alarm Mode

Alarm & Light,

Power Supply

 AC220V±10% 50/60Hz

Detection Width

600-2000mm(Customizable)

Detection Height

100-300mm

Weight

300-800Kg



Application:

Used for cloth, non-woven cloth, needle-punched cotton, gel-sprayed cotton, bed sheet, quilt cover, wood, leather and other industries that need pin detection, mainly detect mixed broken needles, blades, metal fragments, ferromagnetic metal and other metal impurities detection.
