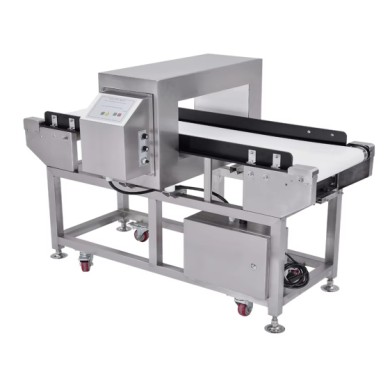

Metal Detector Machine for Food & Pharmaceuticals

  • Model: AS-808-4010
Product Brochure Enquire Now

Features:

1.Adopt dual-channel signal detection circuit merging technology, with high sensitivity and high anti-interference ability.

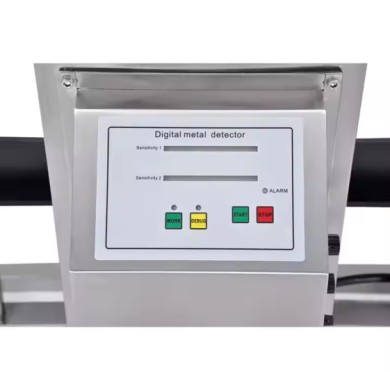

2.With dual signal display function. When a metal object passes through, the signal level indicator will display different inductive intensities according to the size of the metal.
3.The signal processing is completed by the digital circuit, which is simple to adjust, stable and reliable.
4.It has a product effect adjustment function, with 10 levels of independent adjustment for ferrous metals and non-ferrous metals.
5.It has the function of leak detection. When multiple metal signals pass, the instrument will automatically detect the number of signals, and the actuator will not be missed when it moves.
6.When no detected object passes, the instrument is in sleep mode, and the detection is effective only when the object passes.
7.It can be used in conjunction with the assembly line to implement automatic inspection of the assembly line.The detector uses sound and light to alarm and shut down, which is extremely convenient and reliable to operate.


Application:
It is suitable for Food, pharmaceuticals, toys, garment, shoes, chemicals, leather, knitting, paper products and other industries to detect metal impurities mixed in the production process of raw materials. Such as: iron and non-ferrous magnetic metal items (iron, copper, aluminum, stainless steel and other common metals can be detected.can be tested in bulk , bagged, bottled, boxed.

Technical Parameters

Model

AS-808-4010

AS-808-4012

AS-808-4015

AS-808-4020

AS-808-4025

AS-808-4030

AS-808-4035

Detection Channel Width(mm)

4010

4012

4015

4020

4025

4030

4035

400(Customizable wdth200~2000)

Detection Channel Height(≧φmm)

Conventional machine detection window height

Non-standard customized detection window width

100

120

150

200

250

300

350

Sensitve (≥Φmm)

Iron Ball Fe Diameter

1.0

1.2

1.5

2.0

2.5

3.0

3.5

Non-ferrous Metals Such As Copper And Aluminum

1.5

2.0

2.5

3.0

3.5

4.0

4.5

Stainless Steel Diameter

2.0

2.5

3.0

3.5

4.0

4.5

5.0

Body Material

The whole machine is made by stainless steel col drawing process

Alarm Method

Automatic detection of foreign objects stops, and output 12V buzzer alarm sound

Machine Size

≈L:1400×W:820×H:900,the size of the customized product is based on the actual product

Machine Weight

≈200kg

Power Supply

power supply:220V 50Hz power:120W

Weighing Capacity

≤20 Speed:25~30m/min(not adjustable)

Working Desk

Height:700mm(customizable height)
